Delta X 1 Develop Kit

Cost: 999$

Purchase Now

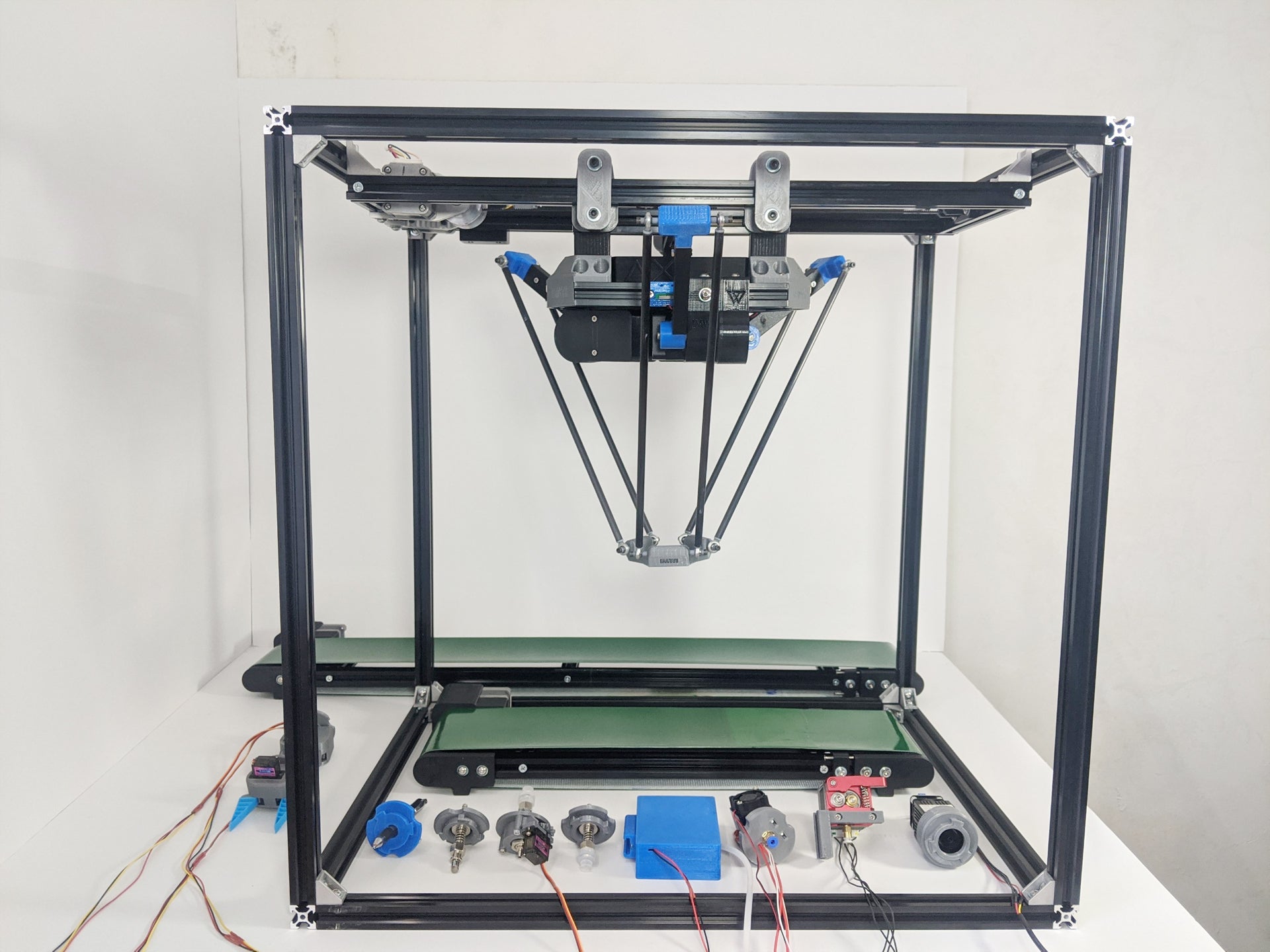

x1_dev_kit

Components

Delta X 1 Develop Kit provides you with all the tools to build your own automation station, suitable for teaching, research and testing.. The kit includes:

  • Delta X 1 Robot
  • Axis 4
  • Pen holder & Touch pen
  • Gripper Kits
  • Pneumatic Kits
  • Laser Module
  • 3D Printing Kit (Extruder Stepper, Hot End kit, teflon tub)
  • Slider X Kit
  • Conveyor X Kit
  • Power supply (12VDC 5A)
  • USB cable
  • Hyper Cube frame

Basic Parameters

Parameters Specifications
Working space D = 340 mm, H = 200mm
Max payload 500g
Max speed 700 mm/s
Pose repeatability ±0.1 mm
Position accuracy ±0.15 mm
Number of axes 3/4
Power supply 12VDC - 5A
Weight 4kg

Electrical Parameters

Components Specifications
Controller Board Arduino Mega 2560, RAMPS 1.4
Communication USB, UART, Bluetooth, Wifi
Input 1 analog input(temp sensor)
Output Stepper/Laser/Vacuum/Axis-4/Gripper)

Mechanical materials

Part Materials
Upper Arm 3D printed (PLA)
Lower Arm Carbon *-fibre tube
Base frame Aluminum profile
Moving base 3D printed (PLA)
Body cover 3D printed (PLA)

Working Space

Reach

x1_working_space_reach

Safe Working Area

x1_working_space_dia
